Product Description
-
Dimensions: The .30-06 brass cartridge case has specific dimensions to accommodate the components of the cartridge, including the bullet, primer, and powder charge. It typically measures approximately 2.494 inches (63.3 mm) in overall length, with a base diameter of around 0.470 inches (11.94 mm) and a neck diameter of approximately 0.34 inches (8.6 mm).
-
Material Composition: Brass is the most common material used for manufacturing cartridge cases due to its excellent combination of properties, including durability, corrosion resistance, and malleability. Brass cartridge cases are typically made from a copper-zinc alloy, with small amounts of other metals added to enhance specific properties.
-
Construction: The .30-06 brass cartridge case consists of a cylindrical body with an open end and a closed end. The open end of the case is designed to hold the bullet, while the closed end houses the primer. The case neck is slightly narrower than the body to securely hold the bullet in place.
-
Primer Pocket: At the base of the cartridge case, there is a recessed area known as the primer pocket. This is where the primer, a small metal cup containing an impact-sensitive explosive compound, is seated. The primer is struck by the firing pin of the firearm, initiating the ignition of the powder charge.
-

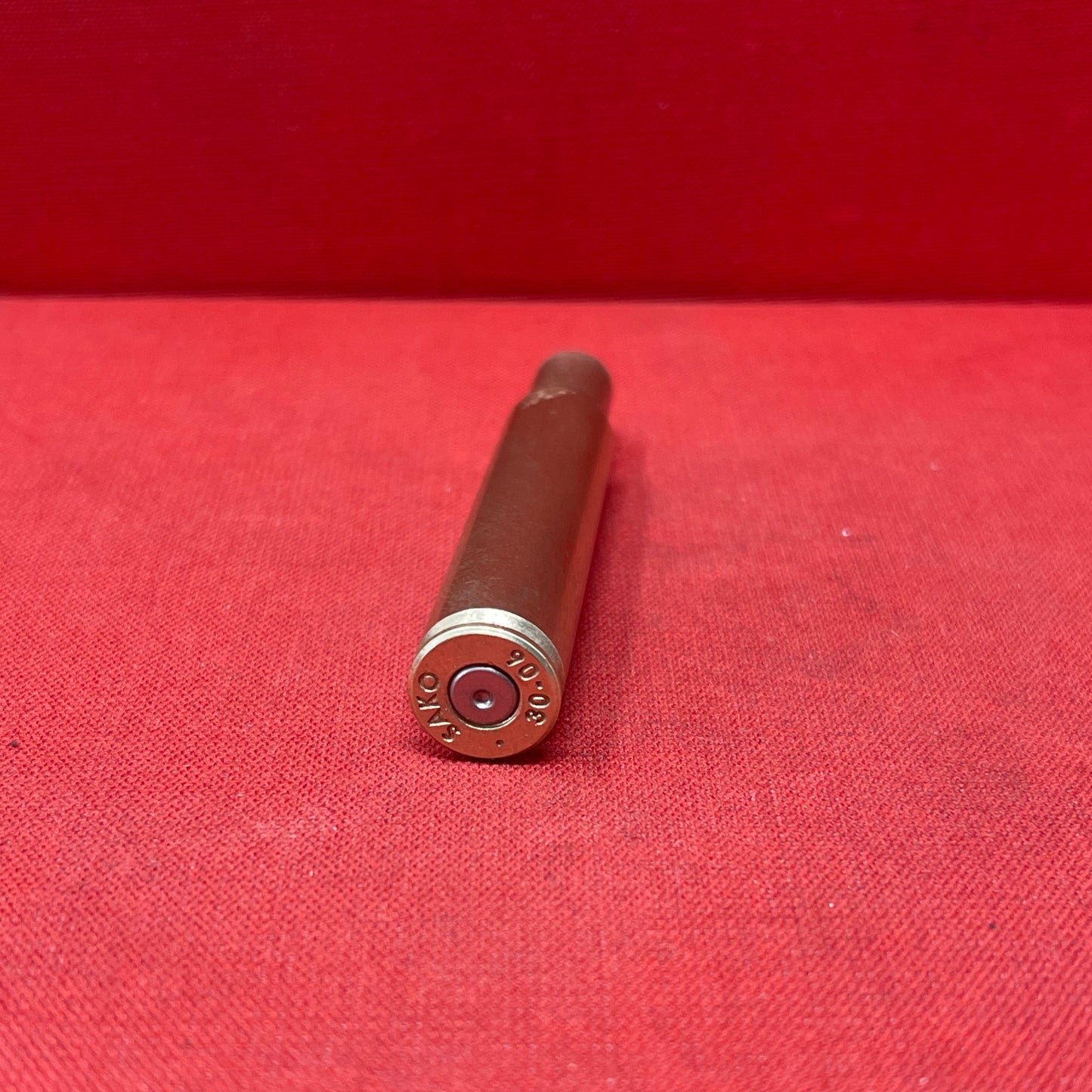

Headstamp: The headstamp is a series of markings stamped onto the base of the cartridge case. These markings typically include information such as the manufacturer's initials or logo, the caliber designation (e.g., ".30-06"), and sometimes additional codes indicating the production lot or year of manufacture.
-
Reloadability: Brass cartridge cases are designed to be reusable through the process of reloading. After firing, the spent cartridge case can be resized, cleaned, and reloaded with a new primer, powder charge, and bullet. Proper reloading techniques and equipment are necessary to ensure safe and reliable performance.
-
Versatility: The .30-06 brass cartridge case is used in a wide range of firearms, including bolt-action rifles, semi-automatic rifles, and machine guns. Its versatility, combined with its proven performance and effectiveness, has contributed to its enduring popularity among hunters, target shooters, and military personnel around the world.
Overall, the .30-06 brass cartridge case is a vital component of one of the most iconic and widely used rifle cartridges in history, known for its reliability, versatility, and effectiveness in various shooting applications.
